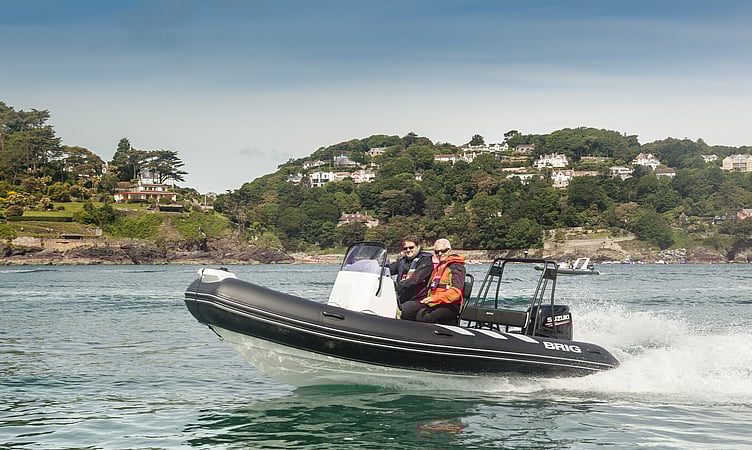

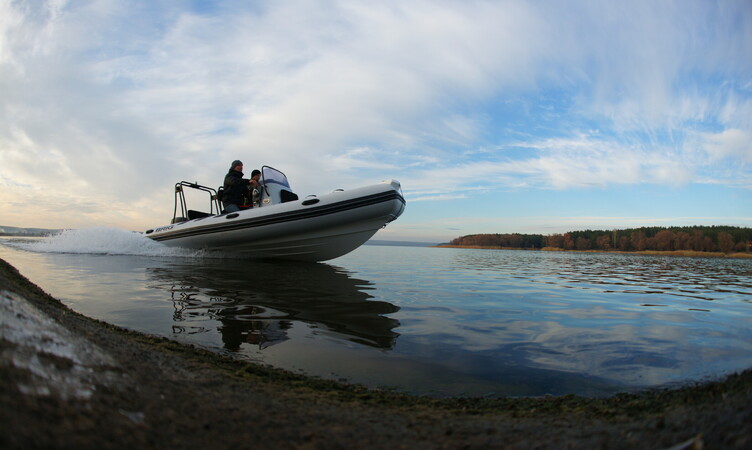

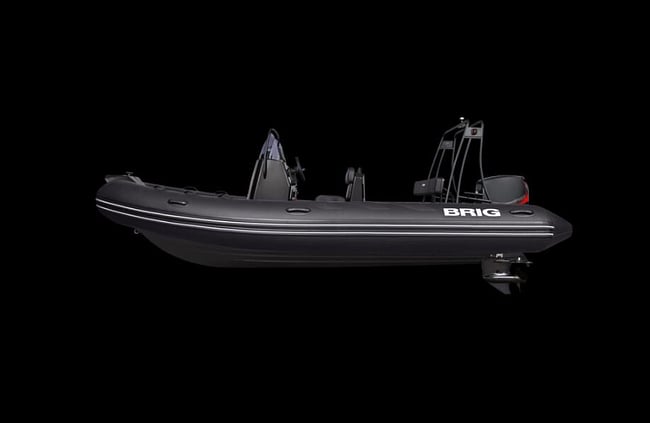

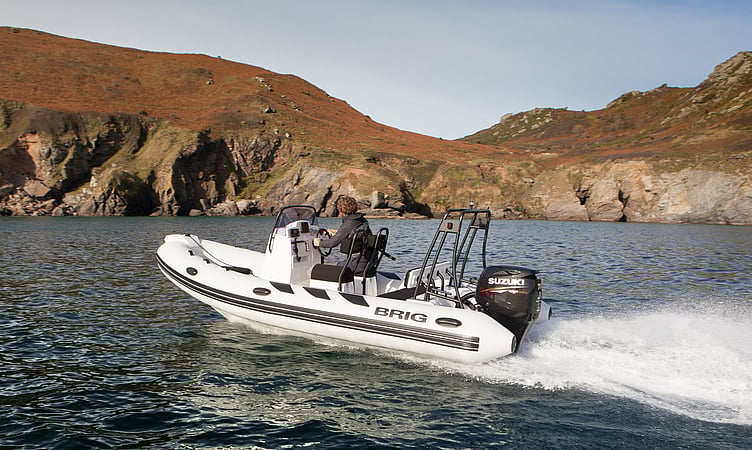

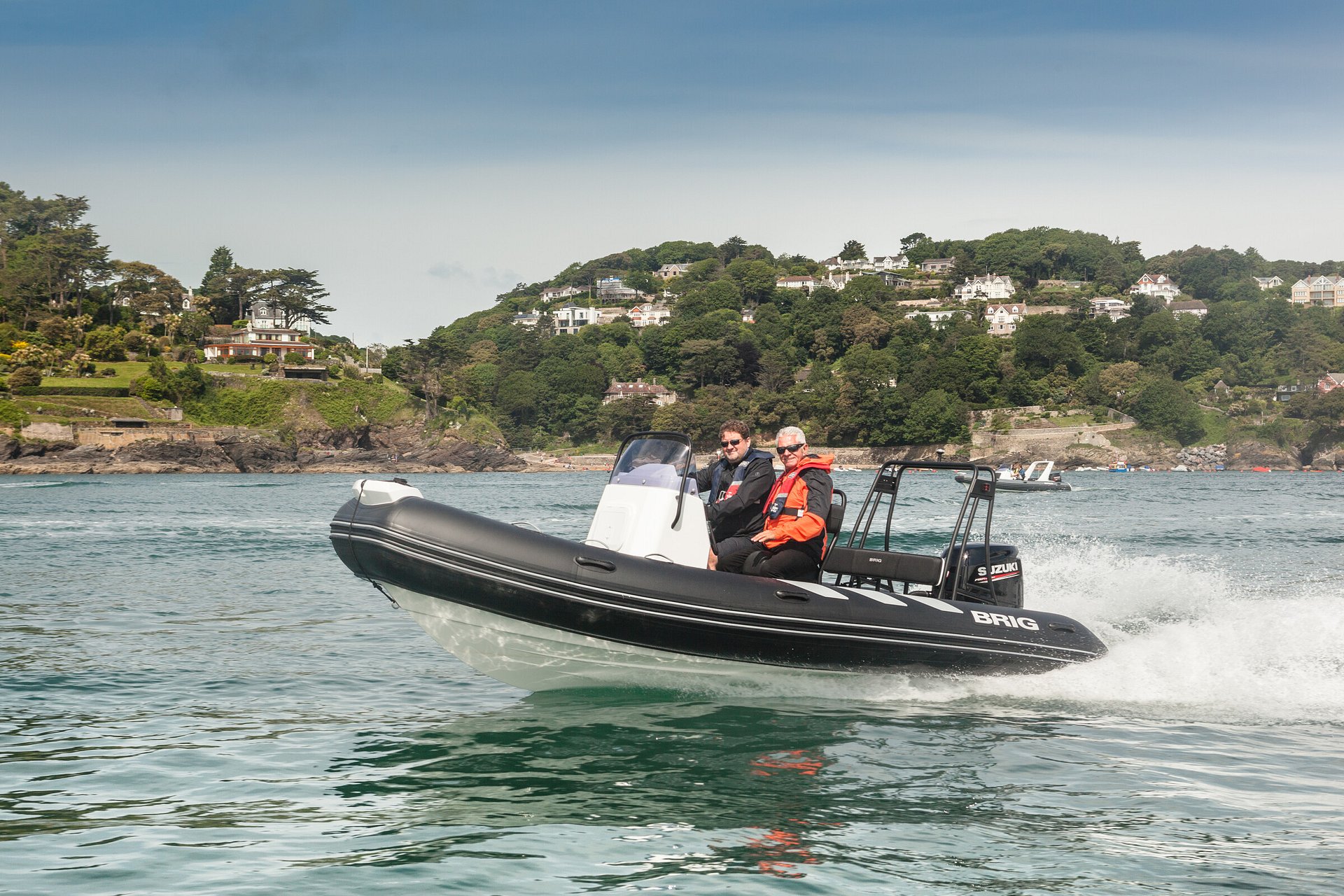

BRIG NAVIGATOR 520
The Navigator 520 is the latest edition to the highly-regarded Navigator series and is designed for outgoing, active families looking to expand their boating horizons and take on new challenges. The Navigator 520 is the ideal support boat for a sailing fleet or those who are seeking a safe and affordable family leisure boat.
STANDARD FEATURES
Deep V hull
Antiskid deck surface
Front and rear stowage lockers
Hull ventilation system
Twin self-bailing unit
Built in fuel tank with external deck filler

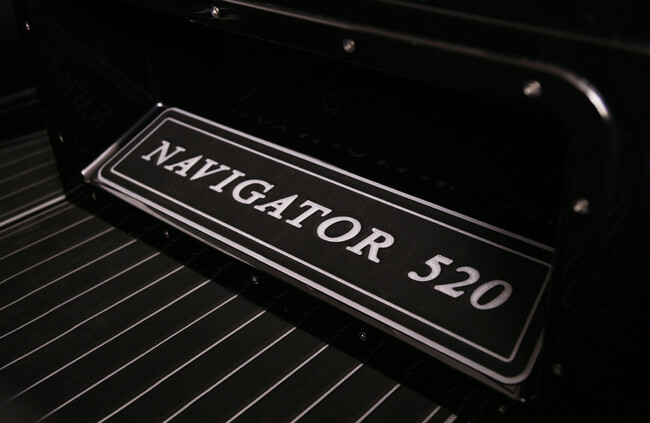

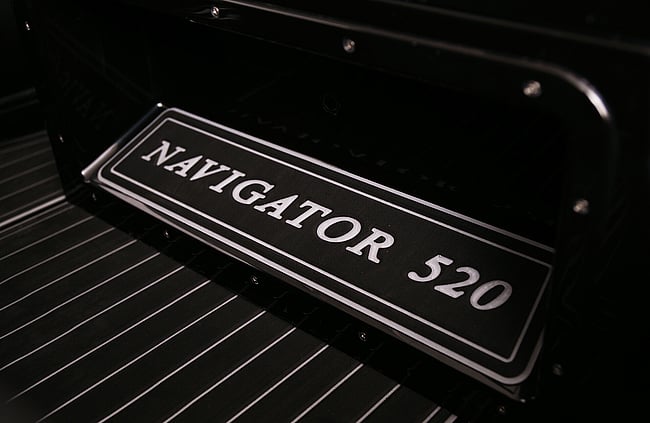

Front step plate
Front towing bow ring
Rear cleats (bollards)
Built-in davit lifting point
Rubbing strake
Safety handles & carrying handles
Two paddles & foot pump
Tube repair kit
Accessories bag
Owner’s manual

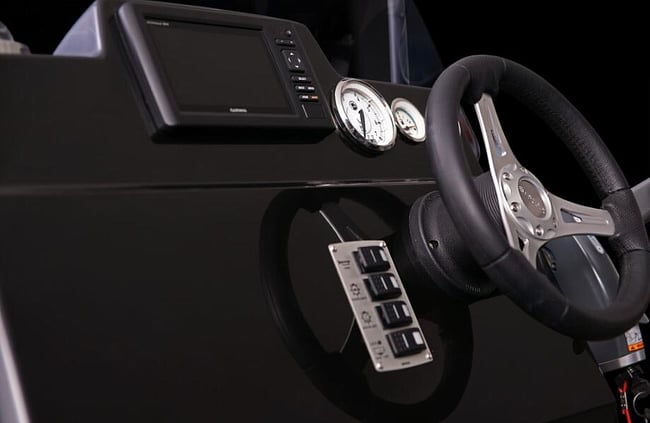

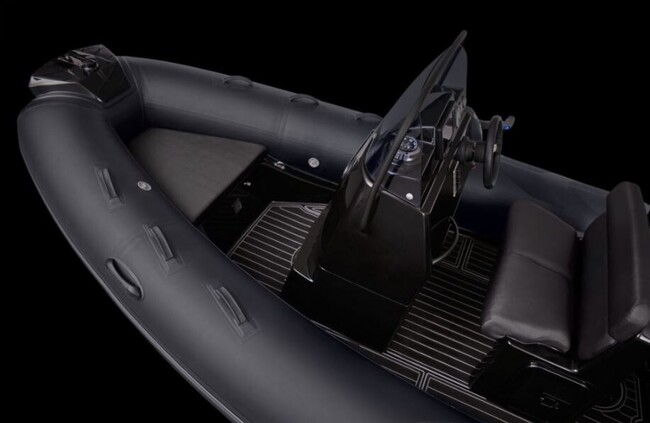

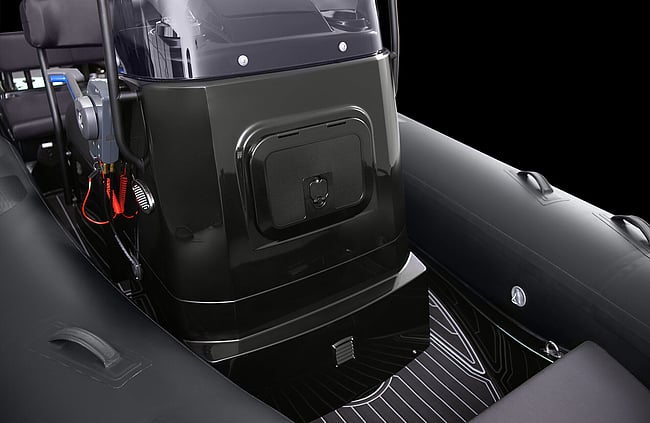

Steering console

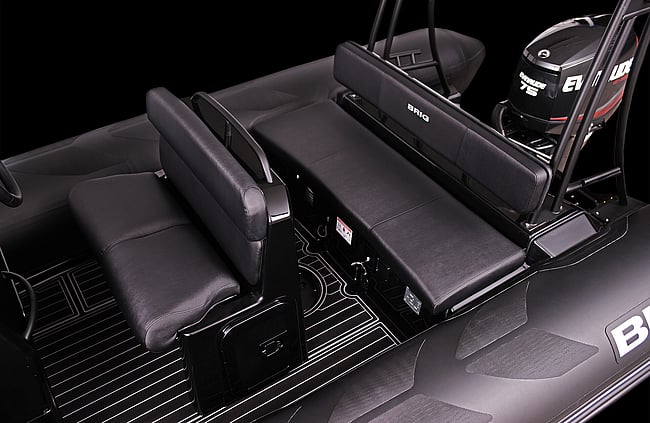

Pilot bolster seat
Steering system (mechanical)
Steering wheel
Automatic bilge pump
Battery container
Battery isolation switch
Fuel gauge
Wake/ski towing point

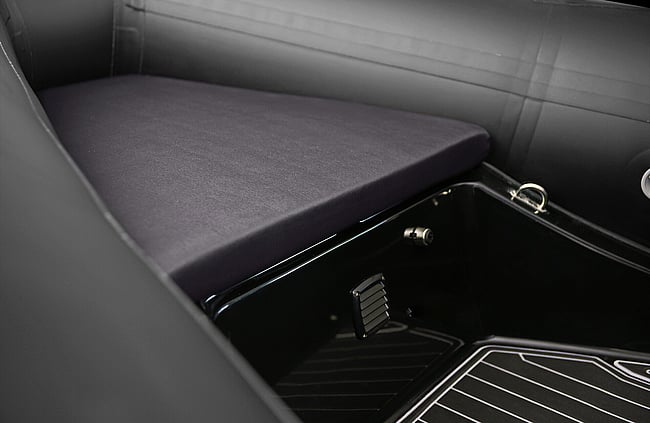

Front locker removable cushion

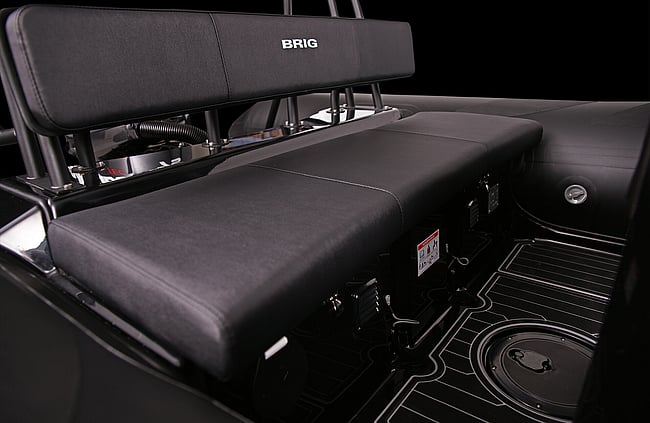

Rear cushion with soft back
Stainless steel arch with navigation lights
Hypalon ORCA Fabric
SPECIFICATIONS
Length: 520 cm
Width: 230 cm
Height: 190 cm
Tube diameter: 50 cm
No. of chambers: 5
No. of persons: 8
Weight of empty boat: 440 kg
Fully equipped weight: 725 kg
Maximum load (rec.): 930 kg
Minimum power: 50 HP
Recommended power: 75 HP
Maximum power: 100 HP
Design category: C
Fuel tank capacity: 90 L
Engine shaft length: 20"
